MIKROTIK R52HnD

MIKROTIK R52HnD

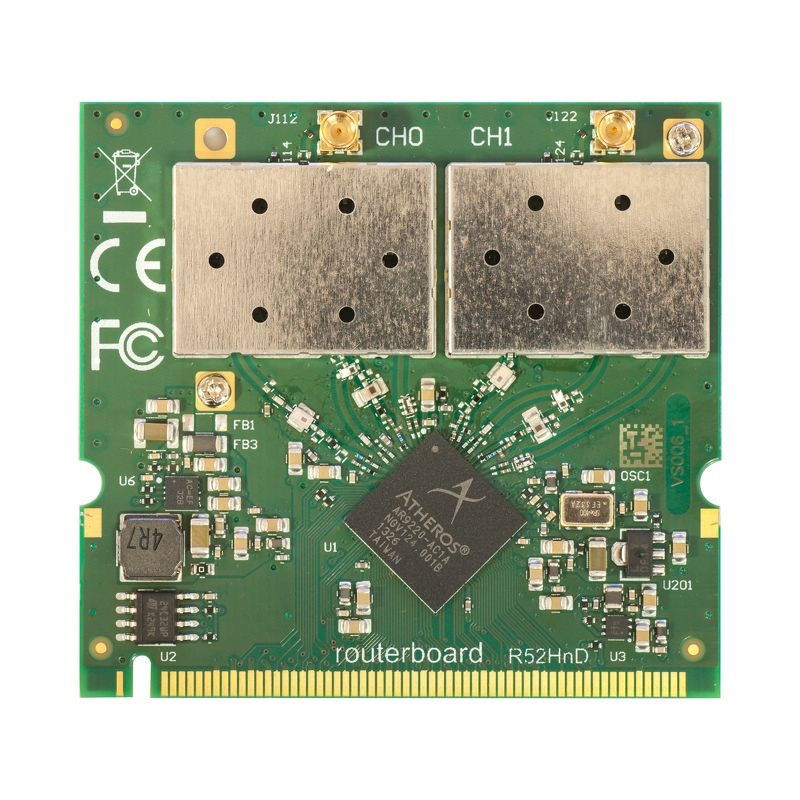

Mikrotik R52HnD 802.11a/b/g/n Dual Chain High Power MiniPCI card - 400mw output Atheros AR9220 chipset, 2.4GHz or 5GHz (selectable), ESD protection, 2x MMCX connectors

MIKROTIK R52HnD
Click on photo to expand
Price: Price inc VAT: For orders
(total sum):
34.77£ 41.72£ <300.00£
34.20£ 41.04£ >300.00£
33.68£ 40.42£ >1000.00£
33.14£ 39.77£ >3000.00£
32.60£ 39.12£ >7500.00£
Quantity:
In stock


Features

The R52HnD is an update to our popular R52Hn miniPCI wireless card. It works in either 2.4 or 5GHz (dual chain ) and now has even higher power (400mW) and improved ESD protection (+/- 15 kV)

Specifications

Product code R52HnD
Chipset AR9220
Wireless 2.4 / 5 GHz (selectable) Dual Chain
Frequency range 2200-2700 or 4800-6100 MHz
Standards 802.11a/b/g/n
Max output power 400 mW
Format miniPCI
Dimensions 60 x 55 x 7mm
Connectors 2x MMCX
Supported channels 5/10/20/40 MHz
Temperature -40°C to +70°C
MAX power consumption 7 W
ESD protection +/- 15 kV

Wireless Specifications

Rate (2.4 GHz) Tx Rx
1MBit/s 26 -100
11MBit/s 26 -94
6MBit/s 26 -96
54MBit/s 25 -80
MCS0 23 -96
MCS7 23 -78
Rate (5 GHz) Tx Rx
6MBit/s 26 -96
54MBit/s 25 -80
MCS0 23 -96
MCS7 21 -78

Attachments

Datasheet - R52HnD-brochure.pdf
