5Ghz Antennas >

JIROUS JRC-24 MIMO DUOPACK (2x Antennas pack)

JIROUS JRC-24 MIMO DUOPACK (2x Antennas pack)

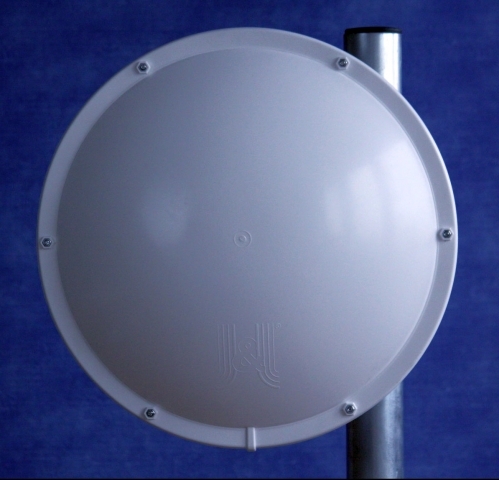

5GHz 24dB Dual-Polarized MIMO Parabolic Antenna with allweather Plastic cover, Two Antennas pack (DUO PACK)!

JIROUS JRC-24 MIMO DUOPACK (2x Antennas pack)
Click on photo to expand
Price: Price inc VAT: For orders
(total sum):
160.15£ 192.18£ <300.00£
156.58£ 187.90£ >300.00£
152.96£ 183.55£ >1000.00£
149.39£ 179.27£ >3000.00£
145.78£ 174.94£ >7500.00£
Quantity:
In stock


Features

PRICE INCLUDES 2 Antennas + 2 RADOMES(1package)!
dual-polarized antenna, horizontal and vertical polarization
easy to use with GentleBOX JR-200
keenly priced
only 1 antenna instead 2 save money for mast!
high front to back ratio
direction links for short distance
client antenna for large distances and difficult conditions

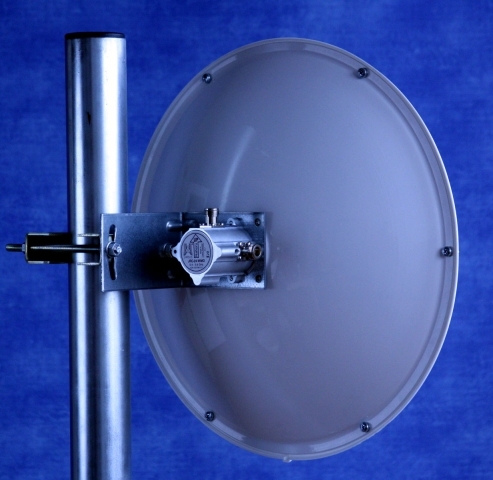

setting elevation (of gradient) and azimuth has independent adjustment
VSWR and isolation are measured during the manufacture
outdoor usage
radome (plastic parabola cover) for each antenna free!

Specifications

Technical parameters
Frequency range 5,4 - 5,9 GHz
Gain 23,6 ±0,6dBi
VSWR ≤ 1,5
Front to back ratio ≥ 32 dB
Beamwith-3 dB 9°
Connector N - Female - JRC-24 MIMO
Polarization linear, horizontal and vertical
Parabola ø 38 cm
aluminium alloy with baking colour
Cover UV steady plastic
Instalation for mast ø 27 - 74 mm

The radiator is internally treated by high frequency technology "Hydrophobic coating" which increases resistance against humidity.

Packing: 2 pcs in carton (DUO PACK)

Attachments

Datasheet - http://en.jirous.com/antenna-5ghz/jrc-24_mimo
JRC-24 MIMO Mounting instructions - jrc-24 mimo mounting instruction.pdf
