JIROUS JC-320 DuplEX ufl

JIROUS JC-320 DuplEX ufl

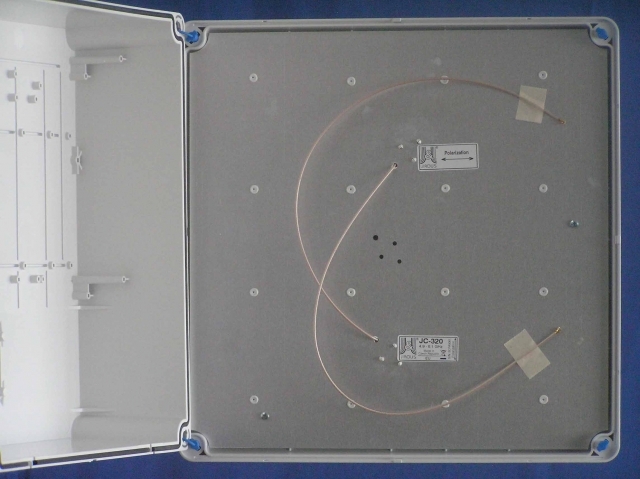

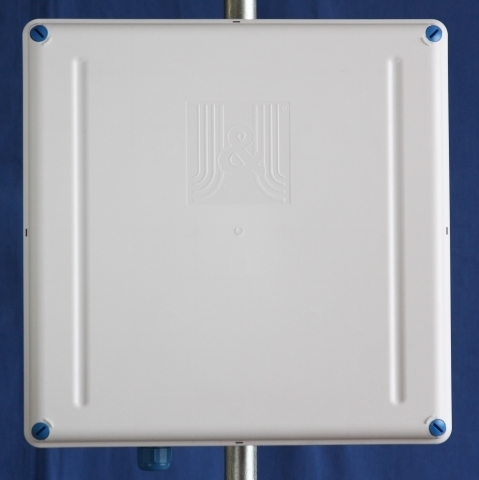

Jirous 20dBi 4.9 - 6.1 GHz Dual Polarized Antenna with equipment box, UFL pigtail inside

JIROUS JC-320 DuplEX ufl
Price: Price inc VAT: For orders
(total sum):
35.85£ 43.02£ <300.00£
35.85£ 43.02£ >300.00£
35.85£ 43.02£ >1000.00£
35.85£ 43.02£ >3000.00£
35.85£ 43.02£ >7500.00£
Quantity:
In stock


Features

# Ready for duplex or MIMO links
# GentleBOX JC-320 contains itegrated 5 GHz antenna with binomial distribution of amplidude for optimal side lobe suprresion and itegrated overvoltage protection
# GentleBOX JC-320 is optimal solution for far clients in range 5 GHz
# GentleBOX JC-320 is optimal solution for access point
# GentleBOX is inclusive and ideal outdoor box for AP, RouterBOARD and other electronics
# With GentleBOX you can forget measuring and drilling! Everything is prepared
# With GentleBOX you can forget seeking for cable glands and assembling material! Everthing is enclosed. You will require 1 flat and 2 (PH1 and PH2) cross-shaped screwdrivers and spanner "13"
# In GentleBOX welts and holes are prepared for easy instalation of RouterBOARD or other electronics including screws and plastic piers
# outdoor and indoor usage
# simplified mounting of RB411, RB433, RB800, ALIX2, ALIX3, Compex, Wispstation, see you pictures
# link point-point
# Gold plated layout for long life time

Specifications

Frequency range 4,9 - 6,1 GHz
Gain5,45-5,85 GHz 20 dBi ±0,5
VSWR ≤ 1,8
Beamwith-3 dB
horizontal 10°- 11°
vertical 18°- 20°
Front to back ratio ≥ 35 dB
Polarization dual horizontal and vertical
Connector on cable UFL
Isolation between connectors (≥43dB)
Material UV steady plastic ABS, Polyamide
Instalation for mast ø 27 - 74 mm
Ready for 8 cables glands 4x Pg11, 4x M20
Outer size 326 x 326 x 113 mm
Inner size 309 x 309 x 88 mm
