JIROUS JC-217UF

JIROUS JC-217UF

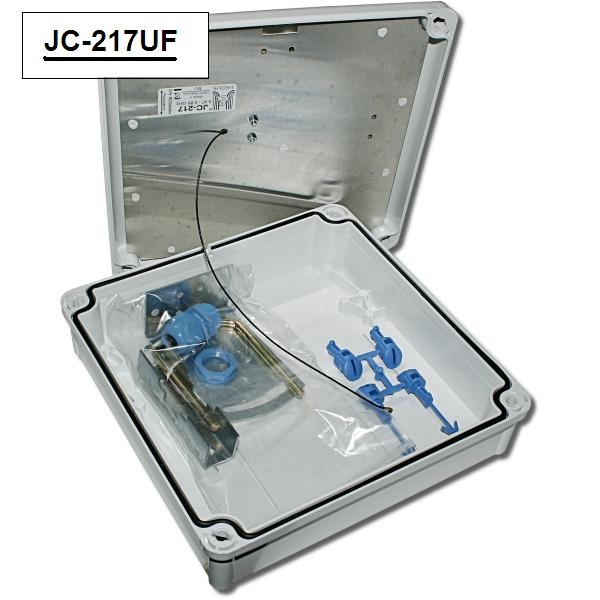

17dBi 5.15 - 5.85 GHz Directional Panel Antenna with equipment box, U.FL pigtail inside

JIROUS JC-217UF
Price: Price inc VAT: For orders
(total sum):
17.92£ 21.50£ <300.00£
17.92£ 21.50£ >300.00£
17.92£ 21.50£ >1000.00£
17.92£ 21.50£ >3000.00£
17.92£ 21.50£ >7500.00£
Quantity:
In stock


Features

-Good performance 5GHz 17dbi antenna - provides outstanding data troughput
-Very wideband directional antenna - supports U-NII and HIPERLAN standard - 5.15 to 5.85 GHz
-U.FL pigtail inside
-Is equipped with a high quality mast mounting hardware allowing accurate elevation adjust
-Can work in horizontal or vertical polarization.
-Large box for equipment, can fit and big mikrotik RB's such as RB532A, RB333

Specifications

Electrical Specifications:
Frequency 5150 MHz - 5850 MHz
Impedance 50 Ohm
VSWR < 1.5
Gain 17.0 dBi +/- 0.5dB
Polarization: Horizontal or Vertical
connector U.FL pigtail inside
Half power beamwidth - HPBW, E vector 30 degrees
Half power beamwidth - HPBW, H vector 30 degrees
Box size (from inside) 186 x 186 x 53 mm
Sidelobe supression >15 dB
Crosspolar rejection >15 dB
Front to back ratio t.b.d.
Lightning protection DC ground
