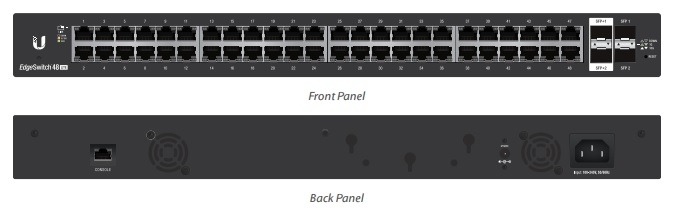

UBIQUITI EdgeSwitch 48 Lite (ES-48-Lite)

UBIQUITI EdgeSwitch 48 Lite (ES-48-Lite)

UBIQUITI EdgeSwitch 48 Lite, ES-48-Lite - 70 Gbps, 48x Gbit LAN, 2x SFP port, 2x SFP+ port, 56W

UBIQUITI EdgeSwitch 48 Lite (ES-48-Lite)
Click on photo to expand
Price: Price inc VAT: For orders
(total sum):
304.78£ 365.74£ <300.00£
303.58£ 364.30£ >300.00£
302.38£ 362.86£ >1000.00£
299.98£ 359.98£ >3000.00£
297.60£ 357.12£ >7500.00£
Quantity:
In stock


Features

EdgeSwitch - Lite (ES-48-Lite) delivers robust performance and intelligent switching for growing networks.
Powerful Enterprise Switch Model

The EdgeSwitch™Lite simultaneously processes traffic on all ports at line rate without any packet loss. Total non-blocking throughput up to 70 Gbps.

Enterprise-Class Features

The EdgeSwitch™Lite supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability. Forwarding rate 104.16 Mpps.

Optical Fiber Backhaul

Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks includes two SFP+ ports for uplinks of up to 10 Gbps.

Advanced UI

The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.

Specifications

Dimensions: 443 x 43 x 286 mm (17.44 x 1.69 x 11.26")
Weight Rack-Mount Brackets Included: 3.65 kg (8.05 lb)
Weight Rack-Mount Brackets Excluded: 3.56 kg (7.85 lb)
Total Non-Blocking Throughput: 70 Gbps
Switching Capacity: 140 Gbps
Forwarding Rate: 104.16 Mpps
Max. AC Power Consumption: 56W
Power Method AC: 100-240VAC/50-60 Hz, Universal Input
Power Method DC: DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Power Supply: AC/DC, Internal, 56W DC

LEDs Per Port
Serial Console Port: N/A
RJ45 Data Ports: Speed/Link/Activity
SFP Data Ports: Speed/Link/Activity

Networking Interfaces: (48) 10/100/1000 Mbps RJ45 Ethernet Ports, (2) 1/10 Gbps SFP+ Ethernet Ports, (2) 1 Gbps SFP Ethernet Ports
Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
Certifications: CE, FCC, IC
Rackmount: Yes, 1U High
ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard

Attachments

Datasheet - EdgeSwitch_Lite_DS.pdf
Quick Start Guide - EdgeSwitch_ES-48-Lite_QSG.pdf
Command Reference User Guide - EdgeSwitch_CLI_Command_Reference_UG.pdf
Admin Guide - https://www.ubnt.com/downloads/guides/edgemax/EdgeSwitch_AdminGuide.pdf
