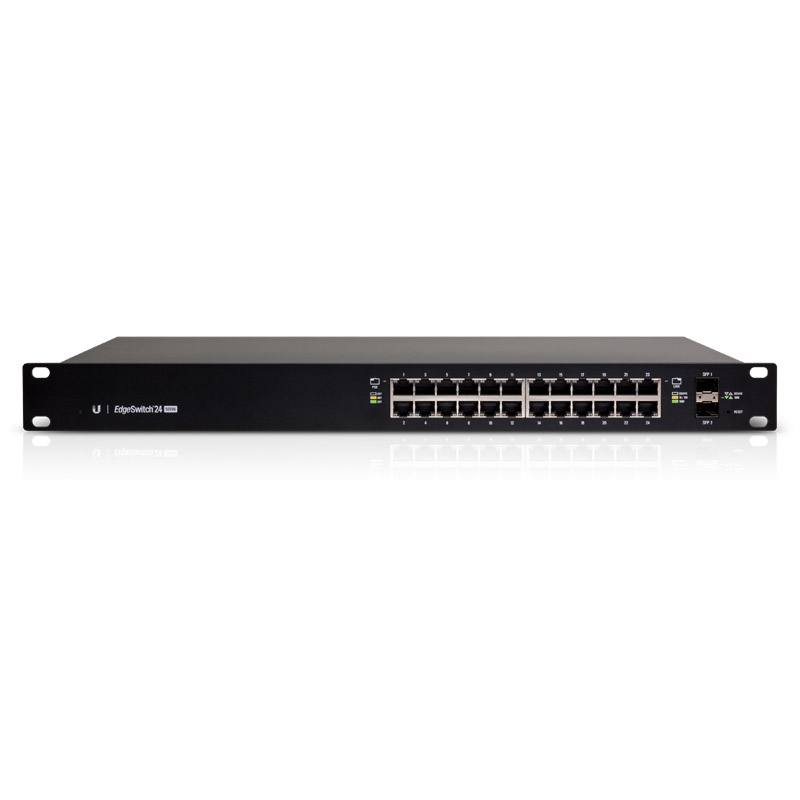

UBIQUITI EdgeSwitch 24 500W

UBIQUITI EdgeSwitch 24 500W

UBIQUITI EdgeSwitch 24 500W, ES-24-500W - 26Gbps, 2 x 1Gbps SFP, 24 x Gigabit POE LAN ports

UBIQUITI EdgeSwitch 24 500W
Click on photo to expand
Price: Price inc VAT: For orders
(total sum):
448.18£ 537.82£ <300.00£
441.02£ 529.22£ >300.00£
436.24£ 523.49£ >1000.00£
433.86£ 520.63£ >3000.00£
429.07£ 514.88£ >7500.00£
Quantity:
In stock


Features

Build and expand your network with Ubiquiti Networks EdgeSwitch, part of the EdgeMAX line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.

The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

For its total, non-blocking throughput it supports up to 26 Gbps.

By defaule EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.

Specifications

Dimensions 485.04 × 44.45 × 285.6 mm
Weight 3.7kg
Total Non-Blocking Throughput 26Gbps
Max. Power Consumption 250W
Power Method 100-240VAC/50-60Hz, Universal Input
Power Supply AC/DC, Internal, 500W DC
LEDs Per Port
RJ45 Data Ports
SFP Data Ports
PoE, Speed/Link/Activity
Speed/Link/Activity
Networking Interfaces 24x 10/100/1000Mbps RJ45 Ethernet Ports
2x 1Gbps SFP Ethernet Ports
Management Interface Ethernet In/Out of Band
Certifications CE, FCC, IC
Rackmount yes, 1U
ESD/EMP Protection Air: ±24kV, Contact: ±24kV
Operating Temperature -5 to 40°C
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4 Standard
PoE Per Port
PoE Interfaces POE+ IEEE 802.3af/at (Pins 1,2+, 3, 6-)
24VDC Passive PoE (Pins 4,5+,7,8-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3af/at Mode 50-57V
Max. Passive PoE Wattage per Port 17W
24V Passive PoE Voltage Range 20-27V

Attachments

Datasheet - EdgeSwitch_DS.pdf
Quick Start Guide - EdgeSwitch_ES-24_QSG.pdf
