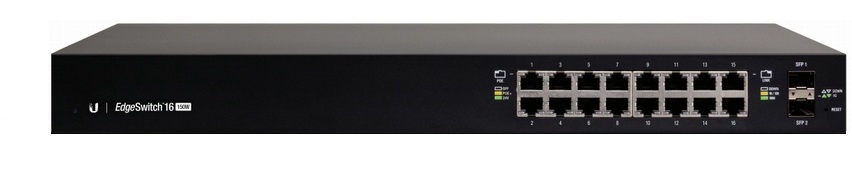

UBIQUITI EdgeSwitch 16 150W

UBIQUITI EdgeSwitch 16 150W

UBIQUITI EdgeSwitch 16 150W, ES-16-150W - 18 Gbps, 16x Gbit LAN, 2x SFP port, POE+, 150W

UBIQUITI EdgeSwitch 16 150W
Price: Price inc VAT: For orders
(total sum):
231.85£ 278.22£ <300.00£
229.48£ 275.38£ >300.00£
228.26£ 273.91£ >1000.00£
227.07£ 272.48£ >3000.00£
225.89£ 271.07£ >7500.00£
Quantity:
In stock


Features

EdgeSwitch ES-S16-150W delivers robust performance, PoE+ support and intelligent switching for growing networks.
The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Switching Performance
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the 16-port model support up to 18 Gbps.

PoE+ Flexibility
The EdgeSwitch with 16 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure. By default, the EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.

Fiber Connectivity
The EdgeSwitch provides fiber connectivity options for your growing networks. For high-capacity uplinks, the 16-port models include two SFP, providing up to 1 Gbps uplinks.

Specifications

Dimensions: 443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
Weight / With Mount Brackets: 2.80 kg (6.17 lb) / 2.89 kg (6.37 lb)
Total Non-Blocking Line Rate: 18 Gbps
Max. Power Consumption: 150W
Power Method: 100-240VAC/50-60 Hz, Universal Input
Power Supply: AC/DC, Internal, 150W DC
Certifications: CE, FCC, IC
Rack-Mount: Yes, 1U High
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard

LEDs Per Port:
RJ45 Data Ports - PoE, Speed/Link/Activity
SFP Data Ports - Speed/Link/Activity

Networking Interfaces:
(16) 10/100/1000 Mbps RJ45 Ports
(2) 1 Gbps SFP Ports

Management Interface:
UART Console Out-of-Band,
Ethernet In-Band

PoE Interfaces:
PoE+ IEEE 802.3af/at (pins 1,2+; 3,6-)
24VDC Passive PoE (pin 4,5+; 7,8-)

Voltage Range:
802.3at Mode: 50-57V
24V Passive PoE: 20-27V

Max. Wattage per Port:
PoE+: 34.2W
Passive PoE: 17W

Attachments

Datasheet - EdgeSwitch_DS.pdf
Quick Start Guide - EdgeSwitch_ES-16-150W_QSG.pdf
Admin Guide - EdgeSwitch_AdminGuide.pdf
CLI Command Reference User Guide - EdgeSwitch_CLI_Command_Reference_UG.pdf
