UBIQUITI EdgePoint Outdoor Switch 16 (EP-S16)

UBIQUITI EdgePoint Outdoor Switch 16 (EP-S16)

UBIQUITI EdgePoint Outdoor Switch 16 (EP-S16) with Dual Poe-in or Terminal Block power in, 16x Gbit Poe Lan ports, 1x RJ45 console port, 2x SFP+ ports

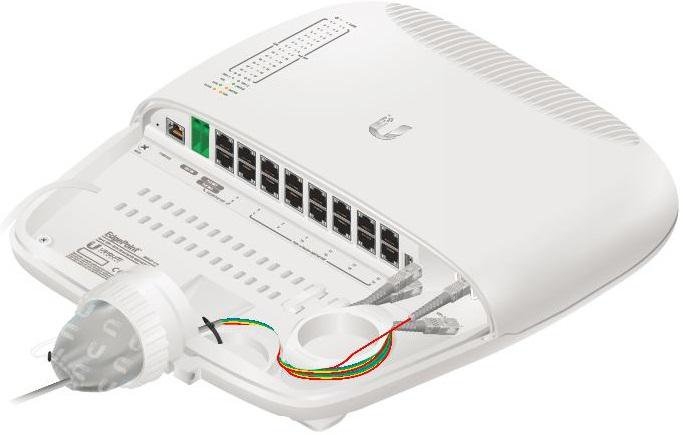

UBIQUITI EdgePoint Outdoor Switch 16 (EP-S16)
Click on photo to expand
Price: Price inc VAT: For orders
(total sum):
377.67£ 453.20£ <300.00£
375.29£ 450.35£ >300.00£
372.91£ 447.49£ >1000.00£
370.51£ 444.61£ >3000.00£
368.12£ 441.74£ >7500.00£
Quantity:
In stock


Features

The EdgePoint™ Switch 16 offers an innovative combination of robust performance, fiber backhaul capability, and the convenience of passive PoE support. Built specially for WISP control.
The EdgePoint Switch 16 features sixteen RJ45 gigabit ethernet ports and two SFP+ ports.

Power Options
• 54VDC, 6A Terminal Block
• Dual PoE Input
Console Port
Data Ports
• (16) RJ45 Ports
• (2) SFP+ Ports

Sixteen RJ45 ports support PoE:
PoE Input
• (2) Ports with Two Options: 54V, 1.5A Passive PoE Input or 54V/24V, 1.4A Passive PoE Output*
PoE Output
• (2) 54 or 24V, 1.4A Passive PoE Output Ports
• (12) PoE+ or 24V, 0.7A Passive PoE Output Ports

All-in-One Design

A single, compact controller eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.

The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.

The EdgePoint features a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, is playing physical connectivity, speed, and status.

*Do NOT configure Port 1 or 2 in PoE Output mode if you are using PoE Input power sources.

Specifications

Dimensions: 326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50")
Dimensions With Wall-Mount: 326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15")
Weight: 3.4 kg (7.50 lb)
Weight With Wall-Mount: 3.8 kg (8.38 lb)
Enclosure Characteristics: Diecast Aluminum Alloy and Polycarbonate with UV Resistance
Max. Power Consumption: 40W (Excludes PoE Output)
Power Input: (1) DC Terminal Block or (2) RJ45 (Ports 1 and 2) (Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs)
Power Supply: Min. 54V / 0.8A (Excludes PoE Output Power)
VDC Input: 54VDC, 6A
Passive PoE Input: (2) 54V/1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 and 2 (Do NOT Configure Port 1 or 2 in PoE Output Mode if You Are Using PoE Input Power Sources.)
Passive PoE Output:
(4) 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 to 4
(12) 802.3af/at or 24V/0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, Ports 5 to 16
Power Monitoring:
(1) DC Terminal Block, Input Power
(2) RJ45, Ports 1 and 2, PoE Input or Output Power
(14) RJ45, Ports 3 to 16, PoE Output Power
Supported Voltage Range: 56 to 42VDC
Button: Reset
LEDs:
System - Power
1 to 16 - Speed/Link/Activity, PoE
SFP - Speed/Link/Activity
Ports: Serial Console Port
Data Ports: (1) RJ45 Serial Port, (16) 10/100/1000 RJ45 Ports, (2) 1/10 Gbps SFP+ Ports
Processor: ARM Cortex-A9 400 MHz
System Memory: 256 MB DDR3 RAM
Code Storage: 32 MB
Certifications: CE, FCC, IC
Pole/Wall Mount: Yes
Operating Temperature: -40 to 65° C (-40 to 149° F)
Operating Humidity: 10 to 90% Noncondensing

Attachments

Datasheet - EdgePoint_DS.pdf
Quick Start Guide - EdgePoint_EP-S16_QSG.pdf
