UBIQUITI BULLET M5 Titanium
UBIQUITI BULLET M5 Titanium

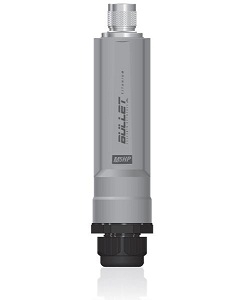

Ubiquiti Bullet M5 Titanium 802.11a/n 25dbm (320mW) High Power Wireless Access Point/Bridge
Ubiquiti Bullet M5 Titanium 802.11a/n 25dbm (320mW) High Power Wireless Access Point/Bridge/client
The Bullet™ M Titanium is the latest version of the popular Ubiquiti Bullet. Like its predecessor, Bullet M5 Titanium is a wireless radio with an integrated N-Type RF connector that can be directly plugged in to any antenna1 to create a powerful and robust outdoor Access Point, Client, or Bridge.
The Ubiquiti Bullet M5 Titanium features a tough weatherproof design. Made from aircraft-grade aluminium, the casing is designed to withstand nature’s harshest elements.
With up to 25dbm of power and enhanced receiver design, the Bullet M5 Titanium is ideal for long-distance links, capable of up to 100+ Mbps real TCP/IP speeds over several kilometres.
The Ubiquiti Bullet M5 Titanium eliminates the need to use RF cables and requires no special antenna or tools to install. No radio card / host board issues. No RF cable quality concerns. No mechanical stability concerns. No enclosure mounting requirements. With the Bullet M5 Titanium, operators can just plug and go.
The Bullet M5 Titanium is engineered to survive extreme conditions. Featuring an upgraded aluminium casing, weatherproof N-Type connection gasket, and water?tight cable gland, the Bullet M Titanium is virtually bullet-proof.
Integrated airMAX™ Technology
The Bullet M5 Titanium can instantly become a powerful TDMA BaseStation utilizing Ubiquiti’s breakthrough airMAX technology. With airMAX, PtMP networks can scale gracefully while maintaining high throughput and low latency performance.
Ubiquiti airOS is a versatile, highly developed Ubiquiti firmware technology. It is exceptionally intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture that enables high-performance, outdoor multipoint networking.
Spectral Width Adjustment
Multiple VLAN Support
Integrated on all Ubiquiti M products, airView provides advanced spectrum analyzer functionality: waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference.
Waterfall Aggregate energy over time for each frequency.
Waveform Aggregate energy collected.
Real-time Energy is shown in real-time as a function of frequency.
Recording Automate airView to record and report results.
Ubiquiti airControl is a powerful and intuitive Web-based server network management application that allows operators to centrally manage entire networks of Ubiquiti devices.
Monitor Device Status
Mass Firmware Upgrade
Web UI Access
Manage Groups of Devices
Processor Specs Atheros MIPS 24KC, 400 MHz
Memory Information 32 MB SDRAM, 8 MB Flash
Networking Interface (1) 10/100 Ethernet Port
Regulatory / Compliance Information
Wireless Approvals FCC Part 15.247, IC RS210, CE
RoHS Compliance Yes
Dimensions 190 x 46 mm
Weight 196 g
Enclosure Characteristics Powder Coated Aluminum
Antenna Connector N-Type Connector (male)
Power Supply 24V, 0.5A PoE Adapter (included)
Power Method Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
Max. Power Consumption
BM2-Ti 7 Watts
BM5-Ti 6 Watts
Operating Temperature -40 to 80° C
Operating Humidity 5 to 95% Condensing
Shock and Vibration ETSI300-019-1.4
Modes Station, Access Point, AP Repeater
Services SNMP, DHCP, NAT
Utilities Site Survey with Preferred SSID, Antenna Alignment Tool, Discovery Utility
QoS 802.11e / WMM Support
