UBIQUITI NETWORKS Products >

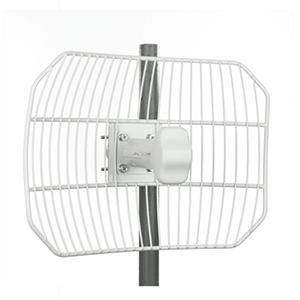

UBIQUITI AirGrid M5 23dbi Airmax

UBIQUITI AirGrid M5 23dbi Airmax

UBIQUITI AirGrid M5 AirMAX - outdoor 5 GHz, 1x LAN, incl. 23 dBi antenna

UBIQUITI AirGrid M5 23dbi Airmax
Price: Price inc VAT: For orders
(total sum):
52.58£ 63.10£ <300.00£
51.40£ 61.68£ >300.00£
47.81£ 57.37£ >1000.00£
46.62£ 55.94£ >3000.00£
45.41£ 54.49£ >7500.00£
Quantity:
In stock


Features

AirGrid M5 is a complete outdoor unit including 23 dBi antenna for 5 GHz band suitable for remote clients. Unit allows real communication speeds up to 100 Mbps.

For high speed transmission unit uses standard 802.11n and in the case of use as a client unit also supports AirMAX (TDMA) to connect to AP with low latency. The unit can also operate against AP supports only 802.11a standard. Antenna system uses patented technology to achieve the best InnerFeed properties while maintaining a good price.

Web-based configuration is very simple and clear. Can be set as:

- AP mode, client or WDS - Traffic shaping - QoS - Between WAN and LAN routing and transparent bridge without NAT or NAT - Signal strength, which is suited to the specific signaling LED

In bridge mode and WDS device supports transparent transmission of IPv6.

Comes with 24V POE injector.

Specifications

Operation mode AP, Client, WDS
Frequence 5475 - 5825 MHz
DHCP yes
Transmission speed 150 Mbps
Standards 802.11a/n
Chipset Atheros
Output for an external antenna no
TX Power regulation yes
Max.output power 20 dBm
Sensitivity -97 dBm
Modulation OFDM, BPSK, QPSK, QAM
Encryption WEP, WPA, WPA2
Comformity FCC, CE
LAN port 1x RJ45 10/100 Mbps
Default IP 192.168.1.20
Default name ubnt
Default password ubnt
Power supply 24V - PoE
Operational temperature -30 up to 75 °C
Dimension 320 x 250 x 160 mm
IPSec Transparent (bridge mode
Supported OS AirOS V
Gain 23 dBi
Polarization H/V
Procesor Atheros MIPS 4KC, 400 MHz
RAM 32 MB
NAND 8 MB

Attachments

Datasheet - ag5_datasheet.pdf
AirGrid Polarization Guide - airgrid_polarization.pdf
